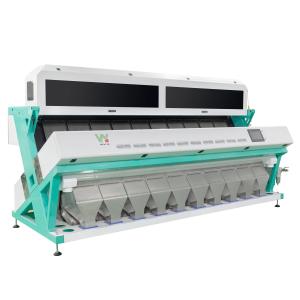

High Quality Digital Wheat Color Sorter Wheat Separation / Selector Machine With 54million Pixels
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.
Wenyao color sorter working principle:
According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.
Steps:
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Wenyao color sorter Features:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.
※ High frequency solenoid valve , special for color sorting. high sorting accuracy.
Wenyao color sorter technical parameters:
| MODEL | WYCS10-640 |
| Chutes/Channels | 10/640 |
| Throughput(t/h) | 10-15t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 6.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <5M3/Min |
| Weight | 1800kg |
| Diamension(L*W*H) | 3750*1540*1852mm |
Wenyao color sorter application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp
Examples of color sorting:
Note:The machine support more than 2500 materials ,welcome to inquire us for more details.
Our service:
Before sale:
no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received the 30% deposit.
